Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: SL-45-600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$20,000.00~US$30,000.00
Packaging Details: Plastic film
Delivery Time: 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10sets / 1months
Max Output: |
10-35kg/h |
Machine Size: |
5000*1500*3200mm |
Max Film Width: |
500mm |
Machine Weight: |
2000kg |
Max Film Thickness: |
0.02-0.10mm |
Screw Diameter: |
45mm |
Barrel & Screw Material: |
38CrMoAI |
Power Of Main Motor: |
11KW / 4 |
Max Output: |
10-35kg/h |
Machine Size: |
5000*1500*3200mm |
Max Film Width: |
500mm |
Machine Weight: |
2000kg |
Max Film Thickness: |
0.02-0.10mm |
Screw Diameter: |
45mm |
Barrel & Screw Material: |
38CrMoAI |
Power Of Main Motor: |
11KW / 4 |

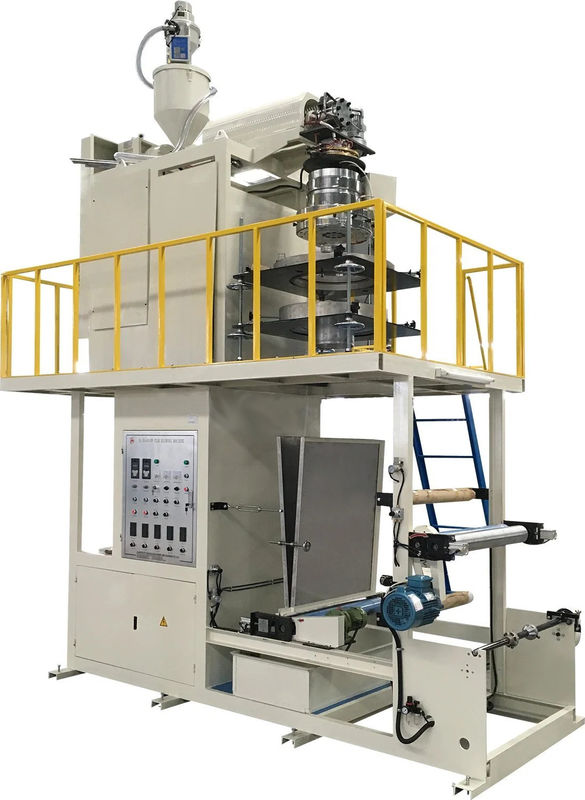

Polypropylene Plastic Film PP Film Blowing Machine With Water Cooling
PP film blowing machine adopts a configuration comprising of down-blowing, air cooling and water cooling, and hot air drying. It is able to blow quality polypropylene film. Both the main motor and lulling motor are equipped with V.F. drive for speed regulation. Moreover, customers can also choose to equip it with Corona Treater, 2 extra winders and Filler magnet, and auto-loader.
Corona treater is able to increase the surface power of plastic films and make it more adhesive for printing and laminating. Extra Winders are used for winding up films on reels of larger size. Filler magnet is made for removing metal scraps in order to protect blower head and auto loader can be used to avoid wastage of film while feeding it into the blower head.
| Model | SL-45-600 | SL-55-800 | SL-65-1000 |
|---|---|---|---|
| Screw diameter | 45mm | 55mm | 65mm |
| Screw length proportion | 30:1 | ||
| Screw Material | 38 CrMoal 38 CrMoal surface with nitride, with special mixed segment |
||
| Blowing material | PP | ||
| Temperature controller | 4Zone | 4Zone | 6Zone |
| Main drive motor power(kw/level) | 11kw/4 | 18.5kw/4 | 30kw/4 |
| Film blowing thickness | 0.02mm-0.10mm | ||
| Printing speed | 0-60m/min | ||
| Output | 10-35KG/H | 15-40KG/H | 20-55KG/H |
| Traction roller length | 600mm | 800mm | 1000mm |
| Max.winding diameter | 550mm | 550mm | 600mm |
| Total weight | 2000KGS | 2500KGS | 3000KGS |
| Overall size(L*W*H) | 5000*1500*3200mm | 5000*1700*3200mm | 5000*2000*3200mm |
PP film has a broad range of uses. It is an essential component in the production of plastic films and can be employed in industries including food packing, pharmaceutical packing, industrial packing, and agricultural coverage.
On top of that, it has made its way to a wide range of applications, making it indispensable in many industries. For example, PP film is necessary for food packaging and industrial packaging, it can be handy for agricultural coverage in order to enhance crop protection, and it is essential for pharmaceutical packaging to protect the safety of drugs.
In sum, PP film is a core element in the production of plastics and is vital to many fields due to its versatility and reliability.
Our technical support and service for PP Film Blowing Machine is available.
Our engineers and technicians are available to answer your questions and help you troubleshoot any issue you may have.
We also offer a range of on-site services such as installation, maintenance, and repair of the machine.
We are committed to providing you with the highest level of customer service and satisfaction.
The PP Film Blowing Machine will be carefully wrapped with plastic film and shipped to the customer's specified port.
