Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: ISO9001:2008
Model Number: HLM160-3000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$300,000.00~US$400,000.00
Packaging Details: Plastic film
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2 sets / 3 months
Unwind Max Diameter: |
φ1500mm |
Laminating Width: |
2000-3000mm |
Laminating Effective Width: |
2000~3000mm |
Power: |
480kw |
Designed Speed: |
0~120m/min |
Rewind Max Diameter: |
φ1600mm |
Laminating Raw Material: |
PA And EVA Mixer |
Coating Thickness: |
0.01-0.04mm |
Unwind Max Diameter: |
φ1500mm |
Laminating Width: |
2000-3000mm |
Laminating Effective Width: |
2000~3000mm |
Power: |
480kw |
Designed Speed: |
0~120m/min |
Rewind Max Diameter: |
φ1600mm |
Laminating Raw Material: |
PA And EVA Mixer |
Coating Thickness: |
0.01-0.04mm |

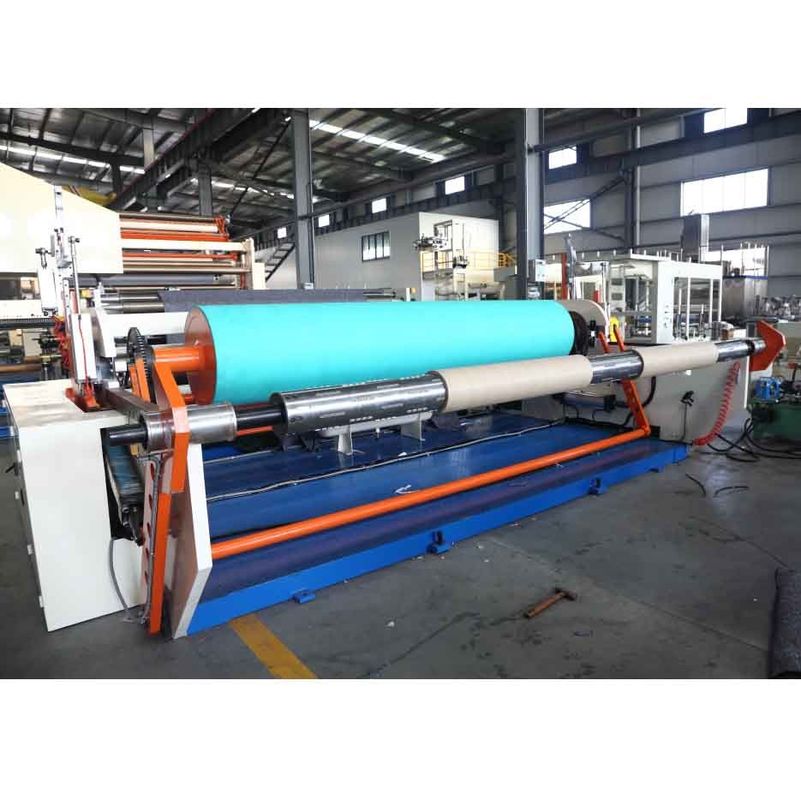

China supplier PE and EVA coated felt extrusion laminating machine
Designed exclusively for laminating PE onto felt, this felt extrusion laminating machine is equipped with an imported PLC programmable controller, offering a significantly advanced user interface. It comprises a one-set unwinding system, an extruding system, a laminating system, and a rewinding system.
The laminating process between the rollers is efficiently managed by a reliable hydraulic system. The unwinding system employs an inverter to control its speed and seamlessly switch rollers without speed reduction. The rewinding system operates using friction technology, enabling automatic material web cutting and joining.
| Parameter | Value |
|---|---|
| Model No. | HLM160-3000 |
| Unwind raw material | roll felt |
| Laminating Width | 2000-3000mm |
| Coating Thickness | 0.01-0.04mm |
| Designed Speed | 0~120m/min |
| Laminating Raw Material | PA And EVA Mixer |
| Power | about 480kw |
| Laminating Effective Width | 2000~3000mm |
| Unwind Max Diameter | φ1500mm |
| Rewind Max Diameter | φ1600mm |
The felt extrusion laminating machine has an array of different applications, which can produce felt fabric materials of assorted types for packaging, safety and decoration.
This type of machine offers improved performance of the felt fabric, thus making it ideal for multiple uses.
Technical Support and Service for Felt Extrusion Laminating Machine
