Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: SL-45-600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$20,000.00~US$30,000.00
Packaging Details: Plastic film
Delivery Time: 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10sets / 1months
Max Output: |
10-35kg/h |
Machine Size: |
5000*1500*3200mm |
Max Film Width: |
500mm |
Machine Weight: |
2000kg |
Max Film Thickness: |
0.02-0.10mm |
Screw Diameter: |
45mm |
Barrel & Screw Material: |
38CrMoAI |
Power Of Main Motor: |
11KW / 4 |
Max Output: |
10-35kg/h |
Machine Size: |
5000*1500*3200mm |
Max Film Width: |
500mm |
Machine Weight: |
2000kg |
Max Film Thickness: |
0.02-0.10mm |
Screw Diameter: |
45mm |
Barrel & Screw Material: |
38CrMoAI |
Power Of Main Motor: |
11KW / 4 |

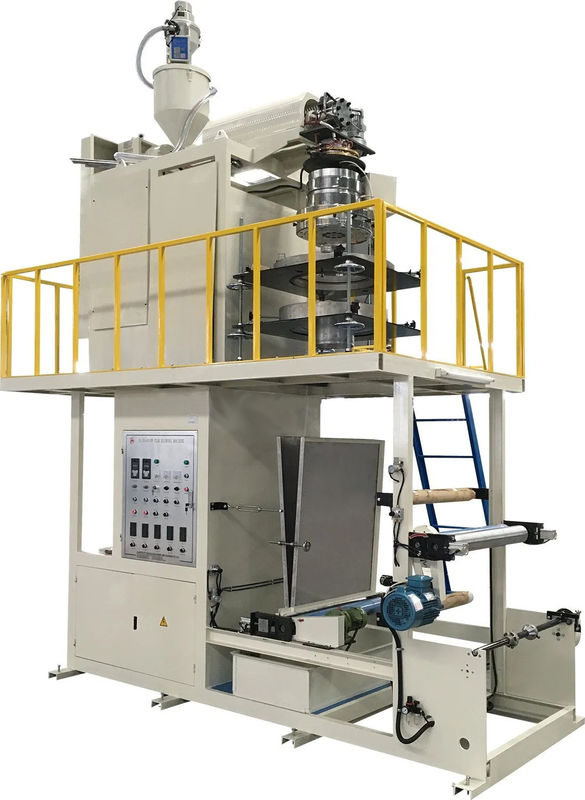

Manufacturer PP Blown Film Extrusion Plant PP Film For Packaging
The PP film blowing machine is designed with a setup that includes down-blowing, air cooling, water cooling, and hot air drying systems, ensuring the production of high-quality polypropylene films. Both the main motor and winding motor feature variable frequency drives for efficient speed control. Furthermore, customers can opt for additional equipment such as a Corona Treater, two extra winders, a Filler magnet, and an auto-loader.
| Model | SL-45-600 | SL-55-800 | SL-65-1000 |
|---|---|---|---|
| Screw diameter | 45mm | 55mm | 65mm |
| Screw length proportion | 30:1 | ||
| Screw Material | 38 CrMoal 38 CrMoal surface with nitride, with special mixed segment |
||
| Blowing material | PP | ||
| Temperature controller | 4Zone | 4Zone | 6Zone |
| Main drive motor power(kw/level) | 11kw/4 | 18.5kw/4 | 30kw/4 |
| Film blowing thickness | 0.02mm-0.10mm | ||
| Printing speed | 0-60m/min | ||
| Output | 10-35KG/H | 15-40KG/H | 20-55KG/H |
| Traction roller length | 600mm | 800mm | 1000mm |
| Max.winding diameter | 550mm | 550mm | 600mm |
| Total weight | 2000KGS | 2500KGS | 3000KGS |
| Overall size(L*W*H) | 5000*1500*3200mm | 5000*1700*3200mm | 5000*2000*3200mm |
Polypropylene (PP) film is a versatile material with an extensive scope of applications. It is a fundamental component in plastic film manufacturing and is utilized across diverse sectors, such as food packaging, pharmaceuticals, industrial wrapping, and agricultural protection.
Our technical support and service for PP Film Blowing Machine is available.
Our engineers and technicians are available to answer your questions and help you troubleshoot any issue you may have.
We also offer a range of on-site services such as installation, maintenance, and repair of the machine.
We are committed to providing you with the highest level of customer service and satisfaction.
The PP Film Blowing Machine will be carefully wrapped with plastic film and shipped to the customer's specified port.
