Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: SL-45-600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$20,000.00~US$30,000.00
Packaging Details: Plastic film
Delivery Time: 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10sets / 1months
Max Output: |
10-35kg/h |
Machine Size: |
5000*1500*3200mm |
Max Film Width: |
500mm |
Machine Weight: |
2000kg |
Max Film Thickness: |
0.02-0.10mm |
Screw Diameter: |
45mm |
Barrel & Screw Material: |
38CrMoAI |
Power Of Main Motor: |
11KW / 4 |
Max Output: |
10-35kg/h |
Machine Size: |
5000*1500*3200mm |
Max Film Width: |
500mm |
Machine Weight: |
2000kg |
Max Film Thickness: |
0.02-0.10mm |
Screw Diameter: |
45mm |
Barrel & Screw Material: |
38CrMoAI |
Power Of Main Motor: |
11KW / 4 |

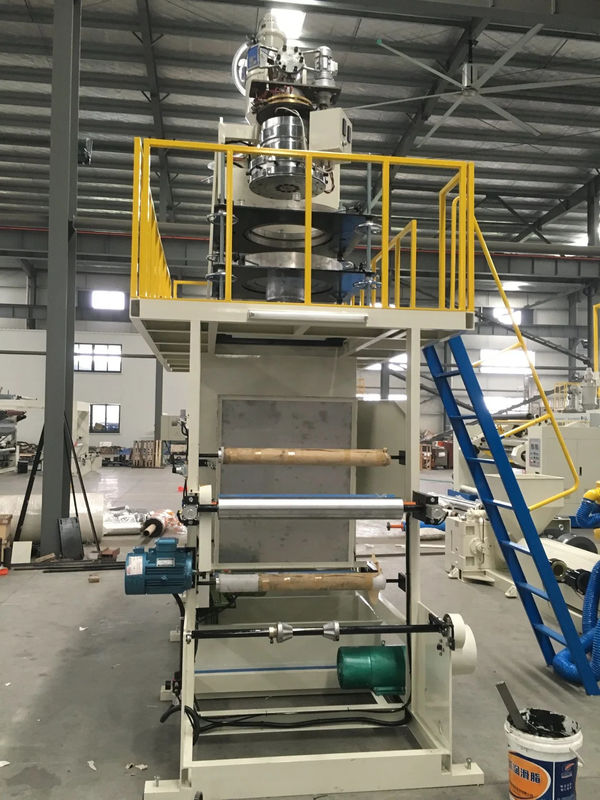

Blowing Polypropylene PP Plastic Film Blown Extrusion Machine
Featuring down-blowing, air cooling, water cooling, and hot air drying capabilities, the PP film blowing machine is engineered to produce premium polypropylene films. The main motor and winding motor are both equipped with variable frequency drives for precise speed regulation. Customers also have the choice to incorporate a Corona Treater, two extra winders, a Filler magnet, and an auto-loader into the setup.
| Model | SL-45-600 | SL-55-800 | SL-65-1000 |
|---|---|---|---|
| Screw diameter | 45mm | 55mm | 65mm |
| Screw length proportion | 30:1 | ||
| Screw Material | 38 CrMoal 38 CrMoal surface with nitride, with special mixed segment |
||
| Blowing material | PP | ||
| Temperature controller | 4Zone | 4Zone | 6Zone |
| Main drive motor power(kw/level) | 11kw/4 | 18.5kw/4 | 30kw/4 |
| Film blowing thickness | 0.02mm-0.10mm | ||
| Printing speed | 0-60m/min | ||
| Output | 10-35KG/H | 15-40KG/H | 20-55KG/H |
| Traction roller length | 600mm | 800mm | 1000mm |
| Max.winding diameter | 550mm | 550mm | 600mm |
| Total weight | 2000KGS | 2500KGS | 3000KGS |
| Overall size(L*W*H) | 5000*1500*3200mm | 5000*1700*3200mm | 5000*2000*3200mm |
Beyond its fundamental role in plastic film production, polypropylene (PP) film has diversified its utility, becoming an essential commodity across various industries. It plays a pivotal part in food and industrial packaging, offers practical benefits in agricultural coverage for crop protection, and is indispensable in pharmaceutical packaging for safeguarding medications.
Our technical support and service for PP Film Blowing Machine is available.
Our engineers and technicians are available to answer your questions and help you troubleshoot any issue you may have.
We also offer a range of on-site services such as installation, maintenance, and repair of the machine.
We are committed to providing you with the highest level of customer service and satisfaction.
The PP Film Blowing Machine will be carefully wrapped with plastic film and shipped to the customer's specified port.
