Monolayer Blown Film Extrusion Machine Extruder Line PP Blowing Machine

Product Details

Place of Origin: Jiangyin, Jiangsu, China

Brand Name: Honghua

Certification: CE, ISO9001

Model Number: SL-45-600

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$20,000.00~US$30,000.00

Packaging Details: Plastic film

Delivery Time: 45 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10sets / 1months

Get Best Price
Highlight:

monolayer blown film line

,

monolayer extruder machine

,

PP Film Blowing Machine

Max Output:
10-35kg/h
Machine Size:
5000*1500*3200mm
Max Film Width:
500mm
Machine Weight:
2000kg
Max Film Thickness:
0.02-0.10mm
Screw Diameter:
45mm
Barrel & Screw Material:
38CrMoAI
Power Of Main Motor:
11KW / 4
Max Output:
10-35kg/h
Machine Size:
5000*1500*3200mm
Max Film Width:
500mm
Machine Weight:
2000kg
Max Film Thickness:
0.02-0.10mm
Screw Diameter:
45mm
Barrel & Screw Material:
38CrMoAI
Power Of Main Motor:
11KW / 4
Monolayer Blown Film Extrusion Machine Extruder Line PP Blowing Machine

Plastic Extruder Mono-Layer PP High Speed Blown Film Machine

Product Description:

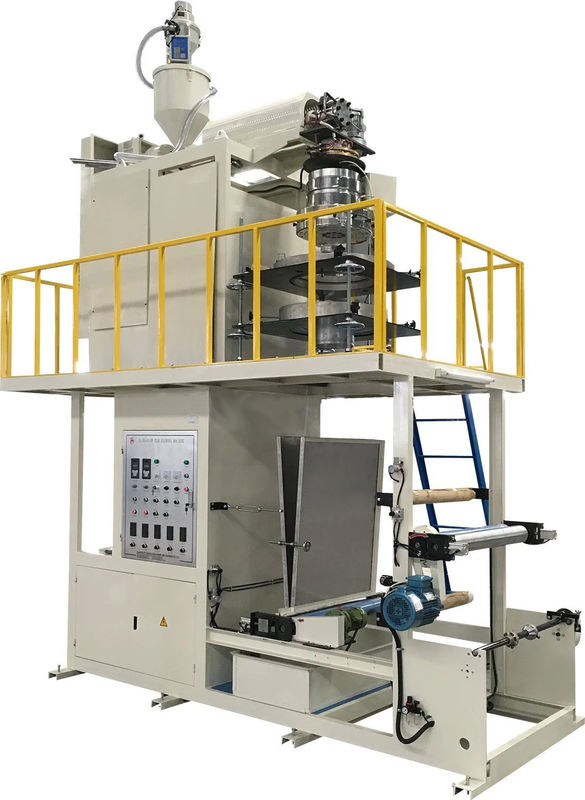

Monolayer Blown Film Extrusion Machine Extruder Line PP Blowing Machine 0



The PP film blowing machine boasts a configuration that combines down-blowing, air cooling, water cooling, and hot air drying, facilitating the production of high-quality polypropylene films. The main motor and winding motor are both outfitted with variable frequency drives for accurate speed control. Additionally, customers can choose to add a Corona Treater, two extra winders, a Filler magnet, and an auto-loader to suit their specific needs.



Technical Parameters:

Model SL-45-600 SL-55-800 SL-65-1000
Screw diameter 45mm 55mm 65mm
Screw length proportion 30:1
Screw Material 38 CrMoal
38 CrMoal surface with nitride, with special mixed segment
Blowing material PP
Temperature controller 4Zone 4Zone 6Zone
Main drive motor power(kw/level) 11kw/4 18.5kw/4 30kw/4
Film blowing thickness 0.02mm-0.10mm
Printing speed 0-60m/min
Output 10-35KG/H 15-40KG/H 20-55KG/H
Traction roller length 600mm 800mm 1000mm
Max.winding diameter 550mm 550mm 600mm
Total weight 2000KGS 2500KGS 3000KGS
Overall size(L*W*H) 5000*1500*3200mm 5000*1700*3200mm 5000*2000*3200mm


Applications:

Beyond its primary role in plastic film production, polypropylene (PP) film has expanded its applications, becoming indispensable in various industries. It plays a pivotal role in food and industrial packaging, offers significant advantages in agricultural coverage for crop protection, and is a key component in pharmaceutical packaging for safeguarding medications.

Monolayer Blown Film Extrusion Machine Extruder Line PP Blowing Machine 1

Support and Services:

PP Film Blowing Machine Technical Support and Service

Our technical support and service for PP Film Blowing Machine is available.

Our engineers and technicians are available to answer your questions and help you troubleshoot any issue you may have.

We also offer a range of on-site services such as installation, maintenance, and repair of the machine.

We are committed to providing you with the highest level of customer service and satisfaction.



Packing and Shipping:

Packaging and Shipping for PP Film Blowing Machine

The PP Film Blowing Machine will be carefully wrapped with plastic film and shipped to the customer's specified port.

Monolayer Blown Film Extrusion Machine Extruder Line PP Blowing Machine 2





FAQ:

Q: What is the Brand Name of this PP Film Blowing Machine?
A: The Brand Name is Honghua.
Q: What is the Model Number of this PP Film Blowing Machine?
A: The Model Number is SL-45-600.
Q: Where is this PP Film Blowing Machine made?
A: This PP Film Blowing Machine is made in Jiangyin, Jiangsu, China.
Q: What materials can this PP Film Blowing Machine process?
A: This PP Film Blowing Machine can process polyethylene (PE) materials.
Q: What is the output capacity of this PP Film Blowing Machine?
A: The output capacity of this PP Film Blowing Machine is up to 250 kg/h.
