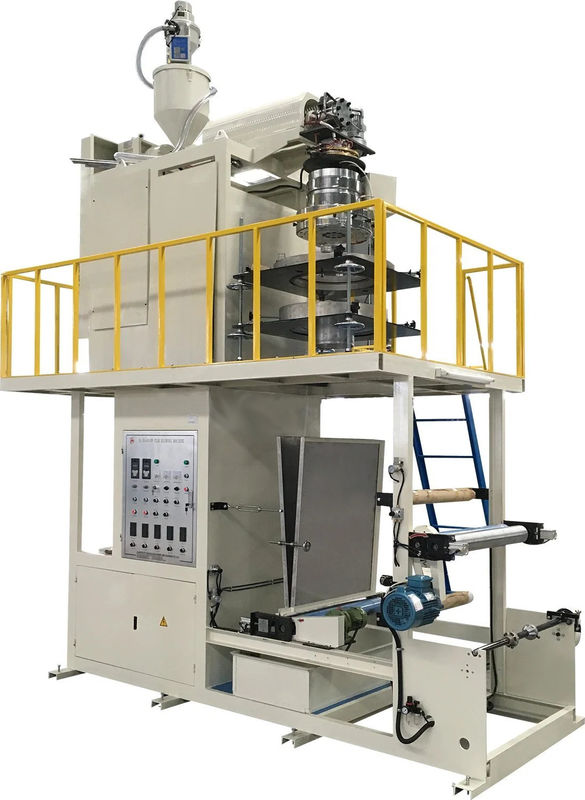

PP PP Film Blowing Machine LDPE Extruder Single Layer Double Layer

Product Details

Place of Origin: Jiangyin, Jiangsu, China

Brand Name: Honghua

Certification: CE, ISO9001

Model Number: SL-45-600

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$20,000.00~US$30,000.00

Packaging Details: Plastic film

Delivery Time: 45 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10sets / 1months

Get Best Price
Highlight:

Pe PP Film Blowing Machine

,

LDPE Extruder

,

Film Blowing Machine double layer

Max Output:
10-35kg/h
Machine Size:
5000*1500*3200mm
Max Film Width:
500mm
Machine Weight:
2000kg
Max Film Thickness:
0.02-0.10mm
Screw Diameter:
45mm
Barrel & Screw Material:
38CrMoAI
Power Of Main Motor:
11KW / 4
Max Output:
10-35kg/h
Machine Size:
5000*1500*3200mm
Max Film Width:
500mm
Machine Weight:
2000kg
Max Film Thickness:
0.02-0.10mm
Screw Diameter:
45mm
Barrel & Screw Material:
38CrMoAI
Power Of Main Motor:
11KW / 4
PP PP Film Blowing Machine LDPE Extruder Single Layer Double Layer

PP Blown Film Machine Plastic Film Extrusion Manufacturer

Product Description:

PP PP Film Blowing Machine LDPE Extruder Single Layer Double Layer 0



The PP film blowing machine is designed with a configuration that includes down-blowing, air cooling, water cooling, and hot air drying systems, ensuring the production of top-tier polypropylene films. The main motor and winding motor are equipped with variable frequency drives for efficient speed control. Furthermore, customers can customize their setup with a Corona Treater, two extra winders, a Filler magnet, and an auto-loader to suit their specific requirements.



Technical Parameters:

Model SL-45-600 SL-55-800 SL-65-1000
Screw diameter 45mm 55mm 65mm
Screw length proportion 30:1
Screw Material 38 CrMoal
38 CrMoal surface with nitride, with special mixed segment
Blowing material PP
Temperature controller 4Zone 4Zone 6Zone
Main drive motor power(kw/level) 11kw/4 18.5kw/4 30kw/4
Film blowing thickness 0.02mm-0.10mm
Printing speed 0-60m/min
Output 10-35KG/H 15-40KG/H 20-55KG/H
Traction roller length 600mm 800mm 1000mm
Max.winding diameter 550mm 550mm 600mm
Total weight 2000KGS 2500KGS 3000KGS
Overall size(L*W*H) 5000*1500*3200mm 5000*1700*3200mm 5000*2000*3200mm


Applications:

In addition to its fundamental role in plastic film manufacturing, polypropylene (PP) film has diversified its usage, establishing its importance across multiple industries. It plays a critical role in food and industrial packaging, proves advantageous in agricultural coverings for crop preservation, and is essential in pharmaceutical packaging for ensuring the safety of medicinal products.

PP PP Film Blowing Machine LDPE Extruder Single Layer Double Layer 1

Support and Services:

PP Film Blowing Machine Technical Support and Service

Our technical support and service for PP Film Blowing Machine is available.

Our engineers and technicians are available to answer your questions and help you troubleshoot any issue you may have.

We also offer a range of on-site services such as installation, maintenance, and repair of the machine.

We are committed to providing you with the highest level of customer service and satisfaction.



Packing and Shipping:

Packaging and Shipping for PP Film Blowing Machine

The PP Film Blowing Machine will be carefully wrapped with plastic film and shipped to the customer's specified port.

PP PP Film Blowing Machine LDPE Extruder Single Layer Double Layer 2





FAQ:

Q: What is the Brand Name of this PP Film Blowing Machine?
A: The Brand Name is Honghua.
Q: What is the Model Number of this PP Film Blowing Machine?
A: The Model Number is SL-45-600.
Q: Where is this PP Film Blowing Machine made?
A: This PP Film Blowing Machine is made in Jiangyin, Jiangsu, China.
Q: What materials can this PP Film Blowing Machine process?
A: This PP Film Blowing Machine can process polyethylene (PE) materials.
Q: What is the output capacity of this PP Film Blowing Machine?
A: The output capacity of this PP Film Blowing Machine is up to 250 kg/h.
