Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: HLM100-2400
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$128,000.00~US$220,000.00
Packaging Details: Plastic film
Delivery Time: 50 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 sets / 1 months
Model No.: |
HLM100-2400 |
Coating Thickness: |
0.012~0.035 (Single Layer) |
Design Machine Speed: |
0~150m/Min |
Evenness Of Coating: |
Error ±6%(International Stand) |
Coating Material: |
Coating Grade PE, PP And So On |
Coating Width: |
2000~2400mm |
Material: |
Roll Non-Woven, Roll Woven Fabric |
Model No.: |
HLM100-2400 |
Coating Thickness: |
0.012~0.035 (Single Layer) |
Design Machine Speed: |
0~150m/Min |
Evenness Of Coating: |
Error ±6%(International Stand) |
Coating Material: |
Coating Grade PE, PP And So On |
Coating Width: |
2000~2400mm |
Material: |
Roll Non-Woven, Roll Woven Fabric |

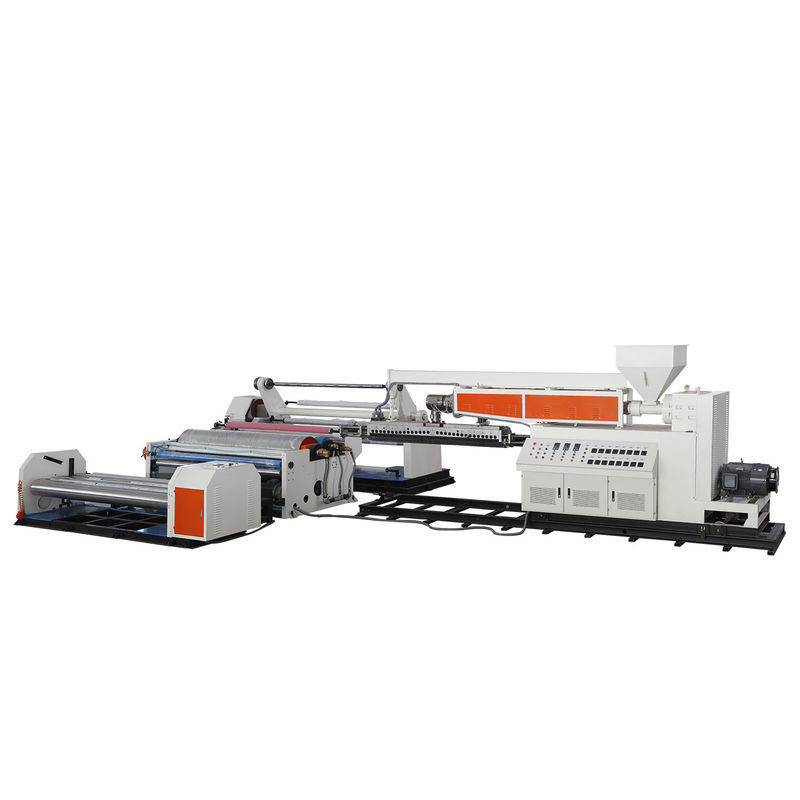

PP PE Non-woven Fabric Extrusion Coating Laminating Machine
This non-woven coating machine is specifically designed for coating and laminating on non-woven fabric. Its unwinding and winding system utilizes a vector inverter for speed control. The automatic roller changing feature ensures that speed is maintained without reduction. Employing proprietary patented technology, the product exhibits outstanding quality characteristics, including high peel-off strength, a pleasing matte effect, symmetrical thickness, and excellent leak tightness. The entire machine is operated through a Mitsubishi PLC controller interface, making it one of the most advanced hot melt coating machines in China. Representing the latest advancements in coating technology, this machine offers users an efficient and high-quality coating experience through its unique technology and precise control system.
| Attribute | Value |
|---|---|
| Unwinding substrate requirements | non-woven, woven fabric |
| Raw material | PE ,PP PE, PP resin, etc. |
| Laminating effective width | 2000-2400mm |
| Coating thickness | 0.012~0.035 (Single layer) |
| Laminating evenness | ± 5 % |
| Strength of stripping | 3~5 N/30mm (according to the actual coating material) |
| Mechanical design speed | 0~150 m/min |
| Unwinding | High-speed non-stop automatic cutting |
| Winding | High-speed non-stop automatic cutting |
- Enhanced properties such as water resistance, oil resistance, and abrasion resistance.
- Increased strength and durability of non-woven fabric.
- Improved appearance, including enhanced gloss and vibrant colors.
The application scope of the non-woven fabric laminating machine is remarkably extensive, suitable for producing various types of non-woven fabric packaging, protective, and decorative materials. Through the lamination process, the performance of non-woven fabrics can be enhanced to meet diverse application requirements.
The non-woven fabric laminating machine is wrapped with plastic film and shipped by air cargo.
Q1: What is a non-woven fabric laminating machine?
A1: A non-woven fabric laminating machine is a device used to apply a layer of plastic film onto the surface of non-woven fabric to enhance its performance and functionality.
Q2: What is the lamination process for non-woven fabric?
A2: The non-woven fabric laminating machine combines plastic film with non-woven fabric through processes like thermal bonding or adhesive application to achieve film coverage on the surface of the non-woven fabric.
Q3: Can the thickness and material of non-woven fabric lamination be customized?
A3: Yes, non-woven fabric laminating machines typically offer adjustable lamination thickness and compatibility with various film materials to meet the requirements of different projects.
Q4: How challenging is it to operate a non-woven fabric laminating machine?
A4: Operating a non-woven fabric laminating machine is relatively straightforward. Users simply need to feed the non-woven fabric into the machine, set parameters, and then start the machine.
Q5: How should the maintenance of a non-woven fabric laminating machine be carried out?
A5: Regular maintenance includes cleaning rollers, maintaining internal cleanliness, preserving the transmission system, and regularly replacing worn components to ensure the equipment functions properly.
