Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: HDLM90-1600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$128,000.00~US$220,000.00
Packaging Details: Plastic film
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 sets / 1 months
Model NO.: |
HDLM90-1600 |
Coating Material: |
Coating Grade PE, PP And So On |
Coating Width: |
1200~1600mm |
Unwind Raw Material: |
Roll Paper |
Coating Thickness: |
0.02~0.08 (Single Layer) |
Printing Color: |
Three Colors Gravure Printing |
Model NO.: |
HDLM90-1600 |
Coating Material: |
Coating Grade PE, PP And So On |
Coating Width: |
1200~1600mm |
Unwind Raw Material: |
Roll Paper |
Coating Thickness: |
0.02~0.08 (Single Layer) |
Printing Color: |
Three Colors Gravure Printing |

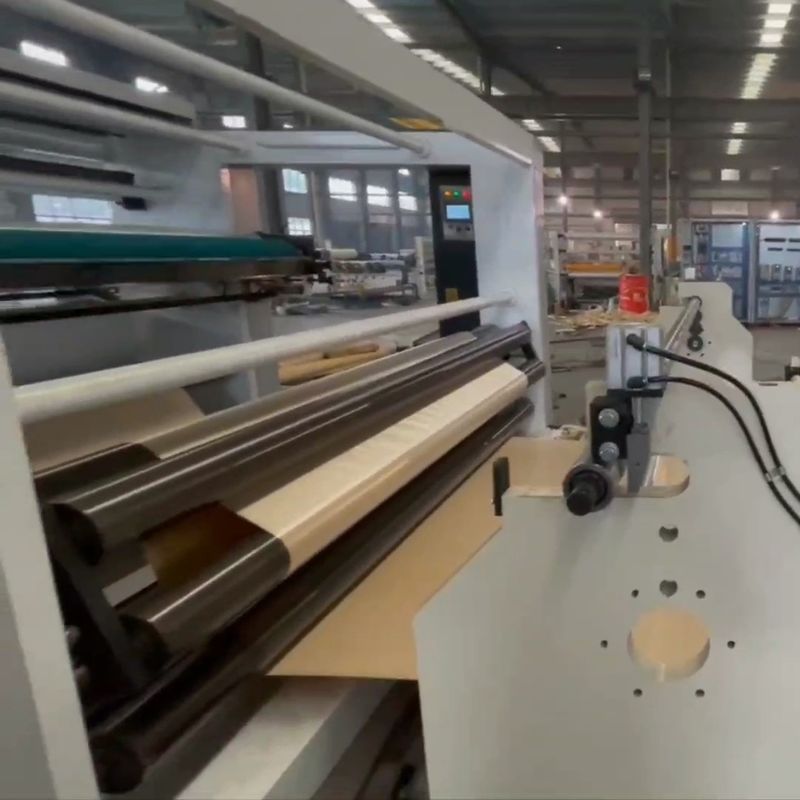

3200mm Anti Rust Paper Extrusion Coating Composite Equipment
Anti-rust paper laminating machine usually consists of the following main parts:
Feeding section: used to feed paper or paper products to be processed into the machine. The feeding part usually includes feeding rollers, conveyor belts and other equipment to ensure that the paper enters the coating area smoothly.
Coating system: It is the core part of the anti-rust paper laminating machine and is used to evenly coat the anti-rust film on the surface of the paper. The coating system includes coating rollers, coating knives, coating cylinders and other equipment. The film material is coated on the surface of the paper through the coating roller to form a thin film.
Heating part: used to heat the coated film material so that it can fully combine with the paper surface and dry quickly. The heating part usually includes heating rollers, heating boxes and other equipment to improve the coating effect and speed.
Pressure part: used to apply pressure to ensure that the coated film is tightly bonded to the paper surface to prevent wrinkling or falling off. The pressure part usually includes pressure rollers, pressure regulating systems and other equipment.
Discharging section: used to take out the processed paper or paper products from the machine. The discharging part usually includes discharging rollers, winding devices and other equipment to ensure that the product is taken out smoothly and kept clean.
- Enhancing properties like moisture resistance, oil resistance, and stain resistance of paper.
- Increasing the strength and durability of paper.
- Improving paper's printability for better printing results.
- Adjustable film thickness and laminating speed to meet various requirements.
| Parameter | Value |
|---|---|
| Model No. | HDLM90-1600 |
| Suitable substrate | 80gsm-150gsm Paper rolls |
| Laminating material | PE, PP |
| Laminating effective width | 1200-1600mm |
| Coating film thickness | 0.02~0.08mm (Single layer) |
| Laminating evenness | error ± 3% |
| Mechanical design speed | 0~30m/min |
| The peeling strength | 3-5N/30mm ( the actual laminating substrate) |
| Unwinding &Winding Max. dia | φ1200mm |
This paper extrusion laminating machine is a type of equipment used for producing paper.
Technical Support and Service for Paper Extrusion Laminating Machine
The following RFQ is about the anti-rust paper laminating machine:
1. Machine specifications
Coating width: 1200-3200mm
Applicable film material types: PE film, PP film, PET film, etc
2. Price and payment terms
Machine price: determined according to machine model and configuration
Shipping fee: Depends on destination
Installation cost: extra
Payment terms: 30% advance payment, balance payment before shipment
Payment terms: balance payment within 30 days
3. Delivery time
Production cycle: 90 days
Shipping time: Depends on destination
4. Technical support and after-sales service
Provide installation and debugging services
Provide operational training
After-sales service includes troubleshooting, parts replacement, etc. The warranty period is one year.
5. Other requirements
Customized functions or specific accessories can be provided, which need to be negotiated according to the specific needs of the customer.
Provide technical consulting services
