Product Details
Place of Origin: Jiangyin, Jiangsu, China
Certification: CE, ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$50,000.00~US$80,000.00
Packaging Details: Plastic film
Delivery Time: 90 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 sets / 3 months
Maximum Material Width: |
1300mm |
Maximum Material Diameter: |
Kraft Paper Roll 1200mm, Aluminum Foil Roll 1200mm |
Maximum Machine Speed: |
15-25m/min |
Weaving Speed: |
15-22m/min |
Trimming Method: |
Round Knife |
Supply Voltage: |
Three-phase AC, 50Hz, 380V-415V |
Operating Ambient Temperature: |
≤35°C |
Total Power: |
About 32kw |
Maximum Material Width: |
1300mm |
Maximum Material Diameter: |
Kraft Paper Roll 1200mm, Aluminum Foil Roll 1200mm |
Maximum Machine Speed: |
15-25m/min |
Weaving Speed: |
15-22m/min |
Trimming Method: |
Round Knife |
Supply Voltage: |
Three-phase AC, 50Hz, 380V-415V |
Operating Ambient Temperature: |
≤35°C |
Total Power: |
About 32kw |

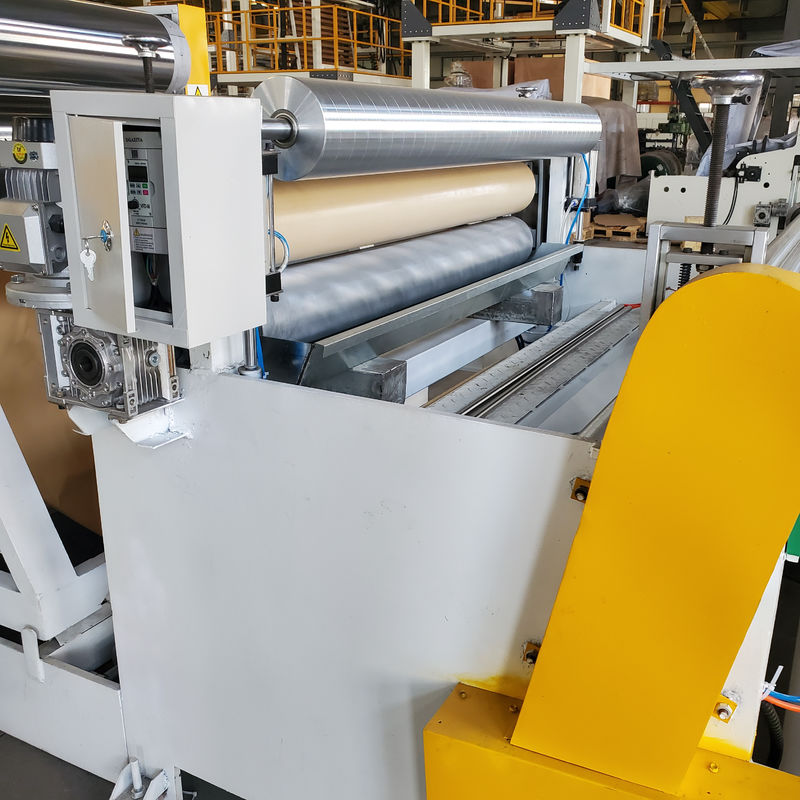

Multi-Purpose FSK Laminator for Heat-Reflective and Moisture-Proof Materials
An ideal machine for converting foil, scrim mesh, and kraft paper into heat- and moisture-resistant facing materials. The FSK Laminator combines durability and automation, suitable for industries requiring long-lasting laminated products for thermal insulation and protective wrapping.
1. Maximum material width: 1330mm
2. Maximum material diameter: kraft paper roll 1200mm coated aluminum foil roll 1200mm
3. Unwinding core specification: 3" (diameter 74)
4. Maximum equipment speed: 8-10m/min (mesh weaving speed)
(1) The speed of other composite products depends on the glue drying speed, and the machine design speed is about: 10m/min
(2) Maximum production speed: 6-8m/min (mesh weaving speed)
(3) The speed of other composite products depends on the glue drying speed, and the machine maximum production speed is about: 6-8m/min.
5. Maximum winding diameter: 800mm (about 2800-3000 meters)
6. Finished product specifications: 1200mm/1300mm.
7. Trimming method: round knife
Reeling core specifications: 3"
8. Winding method: single-axis winding
9. Edge material processing method: air blowing
10. Power supply: three-phase AC 415V/50Hz
11. Air source: minimum 4bar
12. Ambient temperature: maximum 35°C
13. Total equipment power: within 32kw
Machine Features
1. Can produce KSK paper, FSK paper.
2. The grid shape can be made into diamond, rectangle, square.
3. The range of grid size is more selective.
4. The machine can be customized according to customer needs.
The product applications of FSK Laminating Machine are mainly concentrated in building insulation, HVAC systems, industrial packaging and other fields. The specific applications include the following aspects:
1. Heating, ventilation and air conditioning (HVAC) system insulation layer
FSK composite materials are often used for the outer layer of air ducts, with the functions of heat insulation, moisture resistance, flame retardancy, and heat reflection, improving overall energy efficiency.
2. Building exterior wall and roof insulation layer
As a composite surface layer of insulation materials such as rock wool, glass wool, and foam board, it enhances moisture resistance, reflectivity and structural strength.
3. Cold storage and cold chain system insulation lining
FSK materials can prevent the formation of condensed water and improve the cold storage system's cold storage efficiency and moisture resistance.
4. Industrial equipment insulation coating
It is used for external insulation covering of various thermal pipelines, high-temperature tanks, and mechanical equipment, playing a role in heat reflection and surface protection.
5. Export product packaging materials
Aluminum foil reinforced kraft paper has excellent tear resistance, moisture resistance and corrosion resistance, and is suitable for export packaging cushioning of large equipment, electronic appliances, etc.
6. Insulation layer for transportation such as ships and carriages
It is used for insulation and noise reduction in hulls, refrigerated trucks, and carriages to improve comfort and energy efficiency.
7. Moisture-proof and anti-static packaging for electronic products
FSK composite paper can be used for the outer packaging of electronic components to prevent static electricity accumulation and moisture corrosion.
8. Decorative material composite layer
Some high-end decorative materials use FSK materials on the surface to achieve beauty, fire resistance, and moisture resistance.
FSK composite materials are widely replacing traditional plastic films and metal sheets due to their light weight, high strength, temperature resistance, moisture resistance, and environmental protection, and have become an important part of modern construction and industrial materials.
Technical Support and Service for hot laminating machine
1. On-site maintenance and repair services.
2. Remote diagnostics and troubleshooting.
3. Software updates and upgrades.
4. Replacement parts and accessories.
5. Technical advice and guidance.
Packing: Our hot laminating machine is packed with plastic film for protection.
Shipping: The general shipping method is via sea transportation. We can also choose other shipping methods according to customer requirements.
Factory Show
Machining Center
Large advanced CNC Machining Center safeguard the quality of Honghua Machinery
Workshop
The main frame of our equipment adopts a steel plate structure, and the main wall panels are processed by imported large-scale processing centers. The thickness of the wall panels is 4.5cm to 6cm. Small parts are processed by imported small processing centers to ensure the high precision and high stability of the equipment.
Exhibitions
Certificates
The following are common product FAQs about FSK Laminating Machine
1. Q: What materials can FSK laminating machine laminate?
A: FSK laminating machine is mainly used for hot pressing and laminating aluminum foil, glass fiber mesh (scrim), and kraft paper to form a three-layer or multi-layer composite material, which is suitable for insulation, packaging and other industries.
2. Q: What is the maximum width supported by this machine?
A: The maximum composite width supported by conventional models is generally 1300mm to 1600mm, and wider models can also be customized according to customer needs.
3. Q: What are the typical applications of FSK composite materials?
A: It is widely used in HVAC duct insulation layer, building wall and roof insulation layer, industrial equipment outer layer, export packaging liner, cold storage moisture-proof material and other scenarios.
4. Q: Does this machine support automatic tension control?
A: Yes, the FSK laminating machine is equipped with an automatic tension control system to ensure that the aluminum foil, mesh and kraft paper maintain stable tension and avoid wrinkles during high-speed operation.
5. Q: Can it be adjusted according to materials of different thicknesses?
A: Yes. The equipment supports fine adjustment of parameters such as laminating pressure, heating temperature, speed, etc., which is suitable for laminating needs of different thicknesses and materials.
6. Q: What is the production capacity of the FSK laminating machine?
A: The production capacity varies depending on the equipment configuration, generally between 30-100 meters/minute, which is suitable for large-scale continuous production while maintaining excellent laminating strength and appearance quality.
