Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: 1600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$128,000.00~US$220,000.00
Packaging Details: Plastic film
Delivery Time: 140 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 1 sets / 1 months
Coating Material: |
Extrusion Grade PE, PP, TPX Resin |
Coating Width: |
1100~1600mm (Customizable) |
Coating Thickness: |
0.03~0.12 (Single Layer) |
Control System: |
PLC Touch Screen + Automatic Temperature Control + Servo Drive |
Extrusion Method: |
Single Screw Or Twin Screw Extruder |
Working Speed: |
10-50m/min |
Embossing Method: |
Hot Pressing (engraved Steel Roller Or Nickel Roller) |
Coating Material: |
Extrusion Grade PE, PP, TPX Resin |
Coating Width: |
1100~1600mm (Customizable) |
Coating Thickness: |
0.03~0.12 (Single Layer) |
Control System: |
PLC Touch Screen + Automatic Temperature Control + Servo Drive |
Extrusion Method: |
Single Screw Or Twin Screw Extruder |
Working Speed: |
10-50m/min |
Embossing Method: |
Hot Pressing (engraved Steel Roller Or Nickel Roller) |

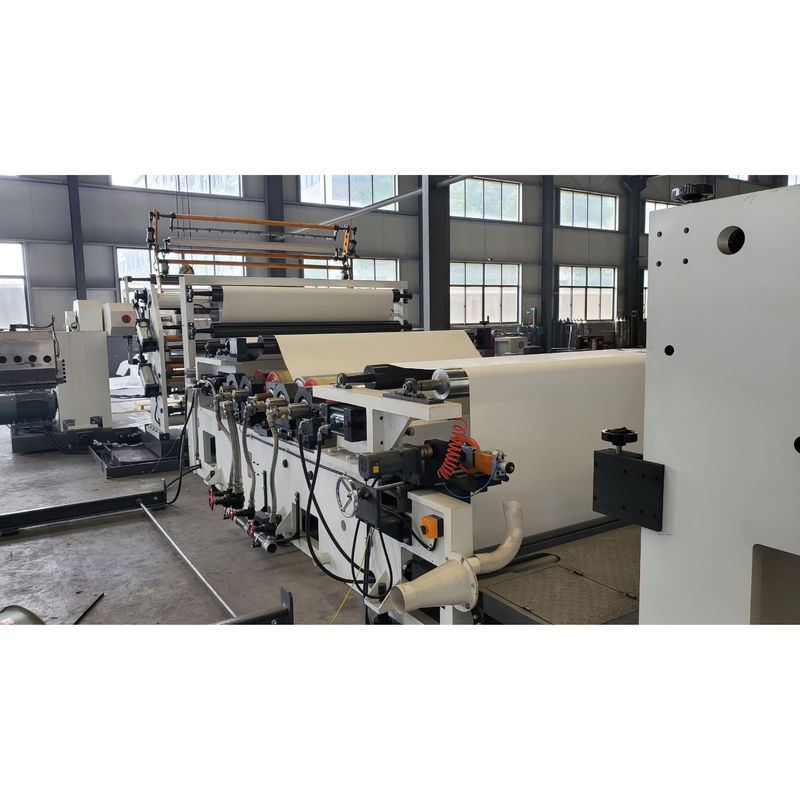

PP Laminating Machine for Release Paper with Optional Embossing Roller Patterns
-- Efficient equipment solutions dedicated to thermal transfer of artificial leather patterns
The equipment adopts modular design. The laminating part can choose single screw or twin screw extruder. The embossing system is equipped with engraved steel roller or nickel embossing roller to achieve high texture restoration and tight adhesion of the film layer. The finished release paper is widely used in the texture pressing process of PU/PVC materials. It can completely transfer patterns such as lychee grain, cross grain, and nappa grain to the surface of artificial leather, and is widely used in the field of mid-to-high-end leather products.
1. High-quality PP coating: high temperature resistance, non-sticky, suitable for hot pressing transfer needs, clear texture without residue.
2. Various embossing patterns: support customized patterns such as litchi, crocodile, cross, water ripples, etc.
3. High peelability: excellent release performance, easy peeling after transfer without damaging the leather.
4. High strength and good toughness: ensure smooth embossing and lamination process without warping.
5. Reusable: under appropriate conditions, repeated use will not affect the texture transfer effect.
| Parameter | Value |
|---|---|
| Model No. | HDLM90-1600 |
| Suitable substrate | 80gsm-150gsm Paper rolls |
| Laminating material | PE, PP, TPX |
| Laminating effective width | 1200-1600mm |
| Coating film thickness | 0.02~0.08mm (Single layer) |
| Laminating evenness | error ± 3% |
| Mechanical design speed | 0~50m/min |
| The peeling strength | 3-5N/30mm ( the actual laminating substrate) |
| Unwinding &Winding Max. dia | φ1200mm |
Mainly used to produce PP coated embossed release paper for leather transfer, widely serving:
1. Artificial leather/synthetic leather manufacturers
2. Automobile interior material factories
3. Leather processing industries such as sofas, bags, shoes, etc.
1. Support sample customization, pattern customization, and full-line supporting solution design
2. Provide integrated services such as equipment installation and commissioning, roller development, and operation training
3. Quickly respond to after-sales teams to ensure stable operation for customers
1. What types of paper is this device suitable for?
This device is suitable for a variety of substrates, including kraft paper, glassine paper, white cardboard, etc. The common weight range is between 60g and 120g, and it can be customized and debugged according to customer needs.
2. Is the coating thickness adjustable? Does it affect the clarity of embossing?
Yes, the coating thickness range is generally 10-40μm, which can be adjusted according to actual needs. The thickness will affect the depth of embossing and peeling performance. Usually, keeping it at around 20μm can take into account both the clarity of the pattern and cost control. We will set the best parameters for customers during the debugging process.
3. What types of embossing patterns can be supported? Can it be customized?
We provide a variety of commonly used embossing patterns (such as lychee pattern, nappa pattern, cross pattern, etc.), and also support customers to customize embossing rollers to meet personalized texture transfer needs. The roller replacement is convenient and fast.
4. Can the width of the equipment be customized? What scale of production enterprises is it suitable for?
Yes, the equipment supports customized effective width, which is usually 1000mm, 1300mm, 1600mm and other specifications. It can also be customized according to the customer's factory space and product requirements. It is suitable for small and medium-sized leather factories, transfer paper suppliers, and professional production lines of large enterprises.
5. Does it support fully automatic operation? Is the operation complicated?
The equipment adopts PLC touch operating system, with automatic unwinding, constant tension control, temperature adjustment, automatic deviation correction and other functions. Novices can operate proficiently after training, and the overall operation is highly automated.
6. Can the release paper produced by this equipment be used with leather embossing machines of different brands?
Yes. The release paper we produce has excellent heat resistance, clear texture, and good peelability. It is suitable for most leather embossing machines and thermal transfer equipment on the market, and customers can use it with confidence.
7. Do you provide equipment installation and after-sales service?
Yes, we provide a complete set of turnkey projects, including equipment transportation, installation and commissioning, operation training, roller customization, and post-maintenance services. Support remote video guidance and on-site technical support.
