Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: HDLM90-1600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$128,000.00~US$220,000.00
Packaging Details: Plastic film
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 sets / 1 months
Model NO.: |
HDLM90-1600 |
Coating Material: |
Coating Grade PE, PP And So On |
Coating Width: |
1200~1600mm |
Unwind Raw Material: |
Roll Paper |
Coating Thickness: |
0.02~0.08 (Single Layer) |
Printing Color: |
Three Colors Gravure Printing |
Model NO.: |
HDLM90-1600 |
Coating Material: |
Coating Grade PE, PP And So On |
Coating Width: |
1200~1600mm |
Unwind Raw Material: |
Roll Paper |
Coating Thickness: |
0.02~0.08 (Single Layer) |
Printing Color: |
Three Colors Gravure Printing |

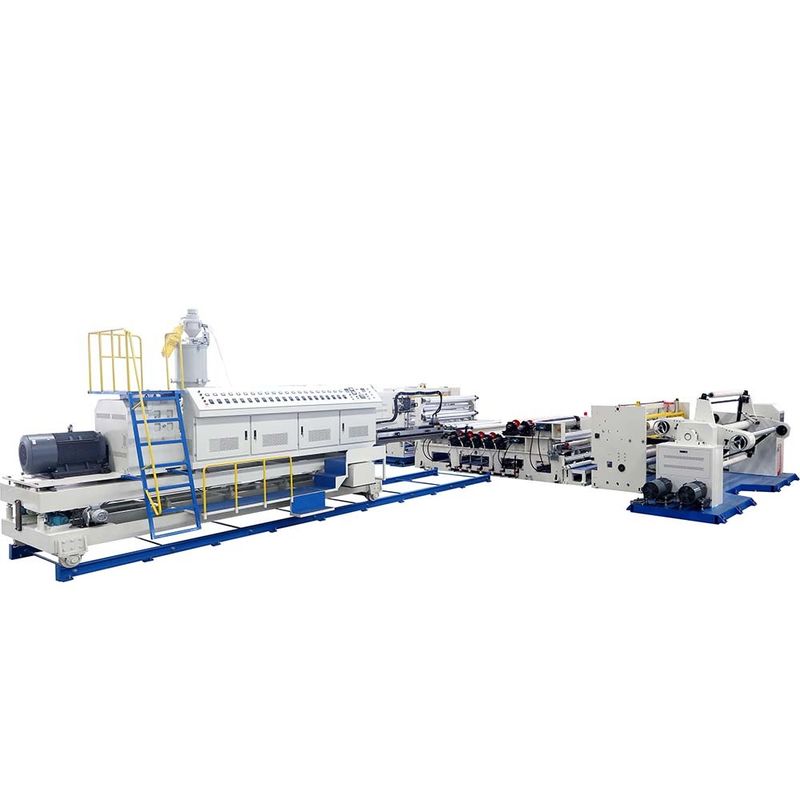

Silicone Coated Release Liner Paper Extrusion Laminating Machine High Speed
This paper and plastic extrusion laminating machine features a user-friendly interface, comprising four main parts: the extrusion system, molding system, unwinding system, and winding system. It is well-suited for the production of Gyrosigma release paper and leather grain release paper. The unwinding and winding systems utilize advanced vector inverter control technology, and the robot automatically completes paper cutting and rolling tasks thanks to our exclusive patented technology. The resulting products exhibit strong adhesion, uniform thickness, clear patterns, high yield, and easy maintenance.
- Enhancing properties like moisture resistance, oil resistance, and stain resistance of paper.
- Increasing the strength and durability of paper.
- Improving paper's printability for better printing results.
- Adjustable film thickness and laminating speed to meet various requirements.
| Parameter | Value |
|---|---|
| Model No. | HDLM90-1600 |
| Suitable substrate | 80gsm-150gsm Paper rolls |
| Laminating material | PE, PP |
| Laminating effective width | 1200-1600mm |
| Coating film thickness | 0.02~0.08mm (Single layer) |
| Laminating evenness | error ± 3% |
| Mechanical design speed | 0~30m/min |
| The peeling strength | 3-5N/30mm ( the actual laminating substrate) |
| Unwinding &Winding Max. dia | φ1200mm |
A release paper extrusion laminating machine is a type of equipment used for producing release paper.
Technical Support and Service for Release Paper Extrusion Laminating Machine
Q1: What is a release paper extrusion laminating machine?
A1: The release paper extrusion laminating machine is a device used to apply a layer of plastic film onto the surface of paper, enhancing its properties such as moisture resistance, oil resistance, and stain resistance.
Q2: What are the application areas of a release paper extrusion laminating machine?
A2: The release paper extrusion laminating machine is mainly used in industries such as electronics, printing, medical, food, and industrial manufacturing to produce various types of release paper materials.
Q3: What is the working principle of a release paper extrusion laminating machine?
A3: The working principle of The release paper extrusion laminating machine involves passing paper through the laminating rollers of the machine, applying a layer of plastic film onto the paper's surface, and then bonding the plastic film to the paper through heating and pressure.
Q4: Is operating the release paper extrusion laminating machine complex?
A4: Operating release paper extrusion laminating machine is relatively straightforward. Typically, it involves adjusting parameters such as film thickness and laminating speed. This extrusion laminating machines usually come equipped with an operation panel and display screen for ease of operation and monitoring.
Q5: What is the price range of a release paper extrusion laminating machine?
A5: The price of a release paper extrusion laminating machine varies based on factors such as model and configuration. The specific price can be customized according to the customer's requirements and budget.
Q6: What is the after-sales service for a release paper extrusion laminating machine?
A6: We provide professional after-sales service, including equipment installation, commissioning, training, and maintenance. Our engineers will offer comprehensive technical support and guidance after equipment delivery to ensure smooth usage for our customers.
