Product Details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Honghua
Certification: CE, ISO9001
Model Number: HRF-1300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$60,000.00~US$70,000.00
Packaging Details: Plastic film
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 sets / 3 months
Model NO.: |
HRF-1300 |
Type: |
Mitsubishi PLC Programmable Controller |
Super Mirror Roll: |
105*1400mm |
105*1400mm: |
140*1400mm, Temperature 200degree |
Glue Roll: |
130*1400mm |
Whole Speed: |
Inverter Motor Control |
The Thickness Of The Wall: |
60mm |
Aluminium Alloy Guide Roll: |
100*1400mm |
Heat Type: |
By Elextric Heating |
Model NO.: |
HRF-1300 |
Type: |
Mitsubishi PLC Programmable Controller |
Super Mirror Roll: |
105*1400mm |
105*1400mm: |
140*1400mm, Temperature 200degree |
Glue Roll: |
130*1400mm |
Whole Speed: |
Inverter Motor Control |
The Thickness Of The Wall: |
60mm |
Aluminium Alloy Guide Roll: |
100*1400mm |
Heat Type: |
By Elextric Heating |

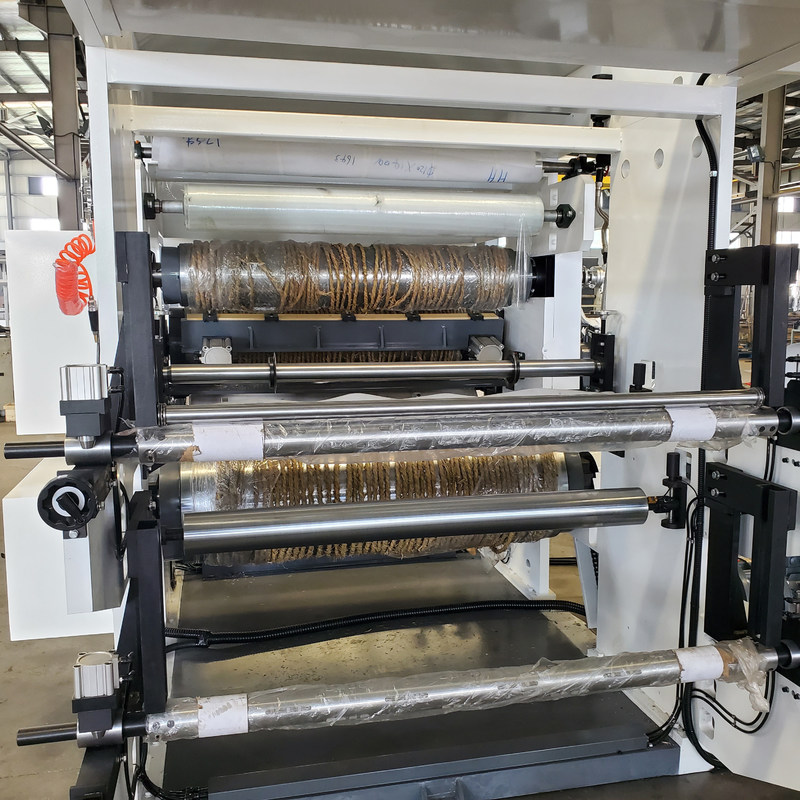

Automatic Thermal Laminator for Foil and Fiberglass Materials
The hot laminating machine operates based on a set of well-defined principles:
Heating: Within the machine, the hot melt adhesive system heats the adhesive material, transforming it into a liquid state, ready for precise application onto various material surfaces.
Coating: The liquid hot melt adhesive is uniformly distributed across the surfaces of one or more base materials, which can include paper, film, or fabric. This step ensures an even adhesive layer.
Stacking: The base materials, now coated with hot melt adhesive, are layered together to form a composite structure. This process guarantees a secure bond without any trapped air or loose sections between the adhesive layers.
Pressure: To establish a strong and dependable bond between the layers of base materials, a specific level of pressure is applied, often achieved through rollers or pressure rollers.
Cooling: After lamination, the materials undergo a cooling phase to allow the adhesive layers to fully solidify and cure. This phase is essential for ensuring the integrity of the bond.
This process results in the solid bonding of different materials, leading to the creation of composite materials suitable for a wide range of applications. Hot melt adhesive laminating machines are versatile and widely used across various industries, including packaging, manufacturing, construction, and textiles.
Our hot melt adhesive laminating machine specializes in thermally bonding aluminum foil and fiberglass cloth to produce top-quality insulation material fabric. Through precise control of temperature, pressure, and coating uniformity, we achieve a robust bond between the aluminum foil and fiberglass cloth, resulting in exceptional insulation performance and durability. Whether in the fields of construction, automotive, aerospace, or other industrial sectors, our hot melt adhesive laminating machine stands as the preferred choice for delivering superior insulation material solutions to our valued customers.
| Model No. | HRF-1300(1600) |
| Suitable for | Hot synthetic glue laminating aluminum foil |
| Machine design speed | 1300mm-1600mm |
|
Magnetic power brake control the unwinding tension |
|
|
Unwinding and rewinding use inflatable shaft |
|
|
The molding pressure roller clutch with hydraulic control, heated by electric heating |
|
|
Inverter motor control the whole speed |
|
|
Double shafts central rewinding system controlled by vector motor, taper tension |
|
The application areas of hot laminating machines encompass diverse industries. By using heat and pressure to laminate different materials, these machines offer various functionalities and performances to meet a wide range of production needs.
Technical Support and Service for hot laminating machine
1. On-site maintenance and repair services.
2. Remote diagnostics and troubleshooting.
3. Software updates and upgrades.
4. Replacement parts and accessories.
5. Technical advice and guidance.
Packing: Our hot laminating machine is packed with plastic film for protection.
Shipping: The general shipping method is via sea transportation. We can also choose other shipping methods according to customer requirements.
Factory Show
Machining Center
Large advanced CNC Machining Center safeguard the quality of Honghua Machinery
Workshop
The main frame of our equipment adopts a steel plate structure, and the main wall panels are processed by imported large-scale processing centers. The thickness of the wall panels is 4.5cm to 6cm. Small parts are processed by imported small processing centers to ensure the high precision and high stability of the equipment.
Exhibitions
Certificates
Q1: What is a hot laminating machine?
A1: A hot laminating machine is a device used to bond layers of materials together using heat and pressure. It creates a protective, durable, and visually appealing layer on various substrates.
Q2: How does hot lamination work?
A2: Hot lamination involves feeding layers of materials through the machine, where they are heated and pressed together. This process creates a strong and unified composite layer.
Q3: What types of materials can be laminated using a hot laminating machine?
A3: Hot laminating machines can laminate a wide range of materials, including paper, cardboard, fabric, plastic films, and more.
Q4: What benefits does hot lamination offer?
A4: Hot lamination improves materials' resistance to moisture, wear, and environmental factors. It enhances visuals, adds durability, and often provides additional protective properties.
Q5: Can laminating thickness and temperature be adjusted?
A5: Yes, most hot laminating machines allow users to adjust laminating thickness and temperature settings based on the specific materials being used.
Q6: Is specialized training needed to operate a hot laminating machine?
A6: While hot laminating machines are user-friendly, specialized training can help users achieve optimal results. Basic guidance on loading materials, adjusting settings, and maintenance is often provided.
Q7: What maintenance is required for a hot laminating machine?
A7: Regular maintenance includes cleaning rollers, ensuring proper alignment, and checking for any worn parts. This helps ensure consistent performance and longevity.
